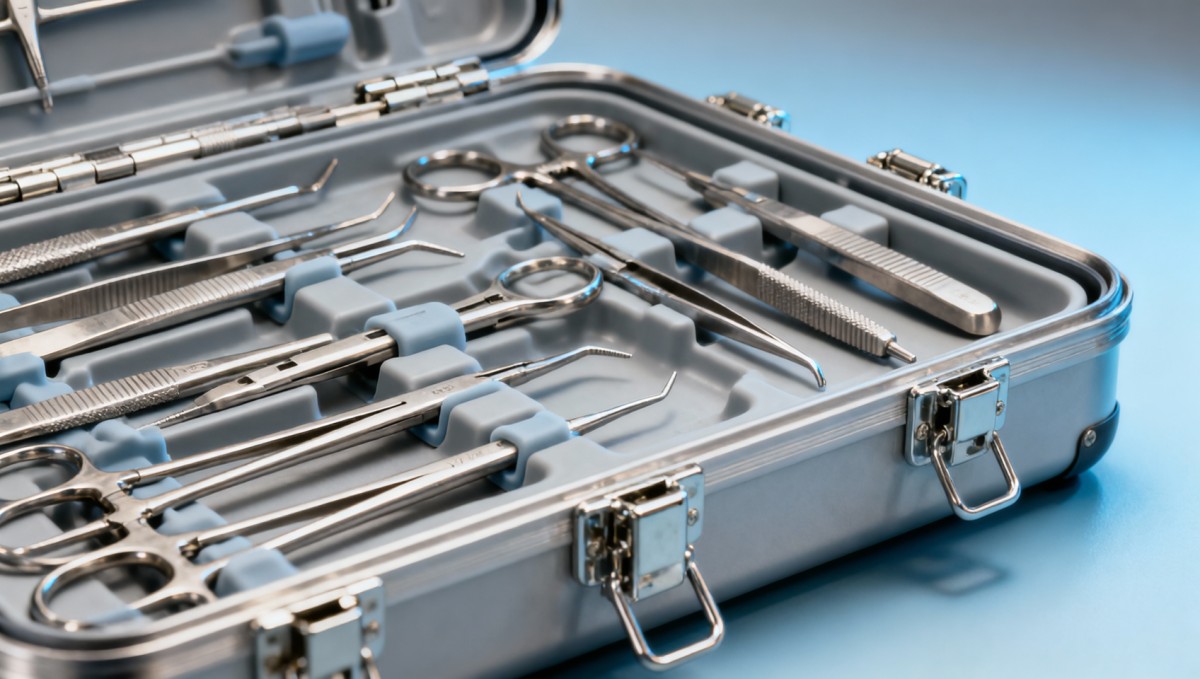

Surgical instrument kits OEM projects fail when tolerances stack up

When surgical instrument kits OEM projects fail, the root cause is often invisible tolerance stack-up—not supplier claims. For buyers comparing surgical instrument kits OEM options alongside iso 13485 audit requirements, autoclave sterilization validation, and medical grade plastic certificates, small dimensional errors can trigger compliance risks, rework, and clinical performance gaps. This article examines how engineering benchmarks expose hidden failure points before they become costly procurement mistakes.

For hospital procurement teams, OEM sourcing managers, operating room users, and MedTech founders, the issue is rarely one bad component in isolation. The real failure emerges when 8, 12, or 20 manufactured dimensions combine across trays, inserts, handles, hinges, and latch systems. A deviation of only ±0.05 mm on one part may appear acceptable, yet once multiple parts interact, assembly fit, sterilization drainage, and instrument retention can all drift outside intended performance.

That is why technical due diligence must go beyond catalog claims and basic pass/fail inspection. In surgical instrument kits OEM programs, tolerance analysis, process capability, sterilization compatibility, and documentation control should be reviewed as a single engineering system. Independent benchmarking helps decision-makers compare suppliers on what actually matters: dimensional consistency, validation readiness, and long-term field reliability.

Why tolerance stack-up breaks surgical instrument kits OEM programs

Tolerance stack-up is the cumulative effect of dimensional variation across multiple components in an assembly. In surgical instrument kits OEM manufacturing, this may involve stainless steel parts, molded polymer trays, silicone retainers, fasteners, hinges, and packaging inserts. Each part may pass its own drawing limits, yet the final assembled kit can still fail. That is the hidden problem many procurement reviews miss during early supplier comparison.

A typical tray system may include 10 to 30 interfaces where dimensions interact. If five related features each drift toward the same limit, total variation may exceed 0.25 mm to 0.80 mm, depending on the design. In a reusable surgical set, that can mean loose retention, excessive lid force, poor alignment after 250 sterilization cycles, or incomplete seating of inserts after transport vibration. The risk is operational, not just cosmetic.

This issue becomes more severe when OEM projects mix processes. CNC machining may hold tighter repeatability than injection molding, while molded medical grade plastics can shift slightly after tool wear, moisture exposure, or thermal cycling. If the design has no robust tolerance budget, a project that looks stable at first article inspection can start failing after batch 3, batch 5, or after a tooling adjustment intended to improve output.

For users in the operating room or sterile processing department, tolerance stack-up shows up as friction, noise, unstable closure, difficult handling, and unpredictable instrument fit. For buyers, it shows up as NCRs, delayed releases, CAPA burden, and extra incoming inspection. For executives, it becomes margin erosion because rework, sorting, and redesign often cost far more than the original unit price savings.

Where stack-up usually starts

• Unclear datum strategy between machined and molded parts
• Designs using nominal fit without worst-case or statistical analysis
• Tooling revisions that shift dimensions by 0.03 mm to 0.10 mm
• Ignoring thermal expansion during autoclave exposure at 121°C to 134°C
• No linkage between drawing tolerances and assembly function

The table below shows how individually acceptable part tolerances can combine into an assembly failure in a surgical instrument kit configuration.

The main takeaway is simple: pass/fail inspection at part level does not guarantee clinical-grade assembly behavior. Surgical instrument kits OEM projects succeed when tolerance limits are tied to function, sterilization stress, and use conditions, not merely to what a supplier says their machine can achieve.

How compliance and sterilization amplify small dimensional errors

In regulated medical manufacturing, dimensional variation is not just an engineering nuisance. It can affect documentation, verification, cleaning validation, packaging stability, and complaint investigations. Under iso 13485-controlled processes, OEM buyers should ask whether dimensional controls are linked to risk analysis, inspection plans, change control, and device master records. If those links are weak, a small tolerance issue can escalate into a formal quality event.

Autoclave sterilization is a major stress factor. Reusable tray systems and surgical instrument kits are commonly validated at 121°C or 134°C, often across dozens or hundreds of cycles. Metals, polymers, and elastomers respond differently under heat and moisture. A latch that closes smoothly at room temperature may bind after thermal cycling, while a molded insert that fits at initial release may relax, shrink, or warp after repeated exposure.

Medical grade plastic certificates matter, but certification alone does not prove dimensional stability in the final assembly. Resin selection, mold design, gate location, cooling balance, and post-mold conditioning can all influence flatness and repeatability. In practice, a certified material can still produce poor field performance if the tool is not qualified or if lot-to-lot process drift is not monitored with suitable Cp or Cpk targets.

From a procurement standpoint, compliance review should therefore include process evidence, not just document presence. Two suppliers may both present quality manuals and declarations, but only one may have validated gauge systems, defined measurement datums, and statistically stable dimensions across 3 consecutive production lots. That difference often determines whether a launch stays on schedule or enters a 6 to 12 week corrective loop.

Critical compliance checkpoints

1. Confirm that critical-to-function dimensions are identified on drawings and linked to risk files.
2. Review sterilization validation assumptions for heat, moisture, and cycle count.
3. Check whether measurement methods have repeatability and reproducibility controls.
4. Verify change control triggers for tooling wear, cavity balance shifts, or secondary process updates.
5. Request data from at least 3 lots rather than relying on a single golden sample.

What buyers should request before approval

A stronger pre-approval package typically includes dimensional reports from first article inspection, sample size logic, gauge method details, sterilization exposure results, and evidence of assembly verification after cycling. Buyers should also review whether critical parts were measured at multiple cavity positions and whether post-sterilization checks were repeated after 10, 50, and 100 cycles when the application requires durable reuse.

The table below helps compare a document-only approval approach with a data-backed engineering review for surgical instrument kits OEM sourcing.

The difference between these two approaches is practical and measurable. One tends to approve fast and correct later. The other slows early decisions by a few days, but often avoids multi-week delays, quarantine cost, and difficult customer explanations after launch.

Engineering benchmarks that reveal hidden OEM failure points

Independent engineering benchmarks are valuable because they translate supplier capability into comparable evidence. In surgical instrument kits OEM evaluation, benchmarking should not stop at dimensional conformity. It should connect design intent, manufacturing repeatability, sterilization stress, and use-case performance. A technically strong review will ask whether the kit still functions after thermal cycling, vibration, handling load, and repeated opening and closing.

One effective method is to divide evaluation into 4 layers: part geometry, assembly interaction, sterilization durability, and documentation control. This structure helps buyers distinguish between a supplier that can produce attractive samples and one that can maintain output over 5,000 units, 20,000 units, or a multi-site rollout. It also gives operators and end users clearer confidence that the assembled set will behave consistently in real hospital workflows.

Benchmarking should include both worst-case and trend-based measurements. Worst-case analysis tests whether maximum permitted variation still supports function. Trend analysis examines whether dimensions drift over time as tools wear or process settings change. In molded components, a 0.04 mm shift may be irrelevant for one rib but critical for a latch slot. Without a benchmark map tied to function, suppliers may control the wrong dimensions while the true failure driver remains untouched.

For VSM-style technical assessment, the goal is to strip away promotional claims and convert manufacturing behavior into decision-ready benchmarks. That means comparing what matters to procurement: repeatability, traceability, validation readiness, and field reliability risk. A lower quoted price can lose its appeal quickly if benchmark data suggests higher odds of rework, complaint handling, or sterilization-related deformation within the first 6 months of deployment.

Recommended benchmark categories

• Critical dimension conformity with defined datums and sample size of 30 or more when feasible
• Assembly fit verification across low, nominal, and high tolerance conditions
• Autoclave cycle exposure at intended use temperature with post-cycle measurements
• Opening, closing, and retention force consistency over repeated use
• Documentation integrity under controlled revision and change notification rules

Benchmark questions procurement should ask

A practical supplier review can be improved by asking a focused set of questions. What is the tightest functional tolerance in the assembly, and which process controls it? How does the supplier verify cavity-to-cavity variation? What happens to closure force after 100 sterilization cycles? Which features have Cpk targets above 1.33, and which are only checked by attribute inspection? These questions move the conversation from sales language to engineering reality.

Another important point is interface ownership. In many OEM programs, one supplier makes the tray, another sources the latch, and a third adds silicone retention elements. If no party owns full-stack dimensional interaction, the customer inherits the integration risk. Benchmarking across component boundaries is therefore one of the most effective ways to detect future failure before clinical launch.

A procurement framework for selecting the right surgical instrument kits OEM partner

Selecting an OEM partner for surgical instrument kits should be treated as a controlled sourcing decision, not a price comparison exercise. Most failed programs can be traced to four gaps: unclear functional requirements, overreliance on certificates, weak sample validation, and poor change visibility after approval. A better procurement framework uses weighted engineering criteria that align supplier performance with clinical use, sterilization exposure, and quality system maturity.

A useful scoring model often includes 5 dimensions: dimensional capability, assembly robustness, regulatory readiness, communication responsiveness, and lifecycle support. For instance, a sourcing team might assign 30% weight to dimensional control, 25% to sterilization and material evidence, 20% to quality documentation, 15% to project responsiveness, and 10% to post-launch support. The exact weighting can change, but technical function should remain the core of the decision.

Lead time should also be interpreted carefully. A supplier promising a 2 week tooling adjustment may sound attractive, but if they cannot demonstrate stable repeatability across 3 lots, the real schedule may become longer than a competitor quoting 4 weeks with stronger validation discipline. In medical procurement, speed without control often produces hidden delay, especially when first production lots require sorting, deviation review, or additional sterilization verification.

For decision-makers managing multiple stakeholders, the sourcing process should gather input from engineering, quality, sterile processing, and end users. Operators can identify ergonomic or handling issues that do not appear on drawings. Quality teams can flag documentation weakness. Engineers can review tolerance logic. Procurement can compare commercial terms. This cross-functional view reduces the risk of approving a supplier that looks good in one area but fails in assembly reality.

OEM partner evaluation matrix

The following matrix can be used during RFQ and technical review to compare suppliers on practical decision factors rather than broad claims.

This matrix highlights a recurring lesson in surgical instrument kits OEM sourcing: the safest supplier is not always the one with the most polished presentation. It is usually the one that can connect drawings, process capability, sterilization testing, and change control into a coherent evidence trail.

Five practical sourcing steps

1. Define critical-to-function dimensions before requesting quotes.
2. Request multi-lot dimensional and assembly data, not one sample report.
3. Include sterilization and handling simulation in technical review.
4. Score suppliers using weighted technical and quality criteria.
5. Set clear post-approval change notification thresholds.

When these five steps are used early, buyers can reduce late-stage redesign risk and improve confidence in both launch timing and field performance. The cost of a deeper evaluation is usually modest compared with the downstream impact of failed trays, unstable inserts, or closure defects reaching sterile processing departments.

Implementation, common mistakes, and FAQ for medical buyers

Even strong specifications can fail if implementation discipline is weak. Surgical instrument kits OEM projects often break down during the transfer from design review to pilot build. At this stage, teams should confirm measurement plans, approved sample references, packaging interactions, and the exact acceptance criteria for fit, force, and dimensional change after sterilization. A pilot lot of 20 to 50 assemblies can reveal integration issues long before full production.

One common mistake is approving based on “good feel” rather than measurable performance. Another is checking parts separately but not measuring the assembled kit after environmental exposure. A third is overlooking operator feedback. If sterile processing staff report that closure effort feels inconsistent or instrument insertion requires repositioning, that feedback should trigger dimensional review instead of being dismissed as subjective.

Documentation should also be aligned with field reality. If a supplier changes resin lot, cavity maintenance conditions, or polishing method, the customer should know whether the change could influence critical dimensions by 0.02 mm, 0.05 mm, or more. In regulated supply chains, even minor process updates can matter when the product must perform reliably through repeated sterilization and handling cycles.

For organizations seeking lower sourcing risk, independent technical benchmarking offers a practical middle layer between supplier self-reporting and costly field failure. It helps procurement teams make defensible decisions, gives engineers objective comparison data, and gives executives a clearer view of long-term supply reliability rather than first-order price alone.

FAQ: How do I know if a tolerance issue is clinically relevant?

A tolerance issue becomes clinically relevant when it affects retention, access, closure integrity, cleaning flow, or repeated handling. As a practical rule, any dimensional drift that changes assembly behavior, increases force noticeably, or alters instrument stability after sterilization should be reviewed as functional risk rather than cosmetic variance.

FAQ: How many sterilization cycles should be checked during sourcing?

The answer depends on intended reuse and validation strategy, but early sourcing review often benefits from checkpoints at 10, 50, and 100 cycles. For demanding reusable systems, additional testing may be needed. The key is to verify both material durability and dimensional stability of the full assembly, not only isolated components.

FAQ: What should procurement request besides certificates?

Request dimensional reports, assembly verification records, post-autoclave measurements, gauge method details, and change control criteria. Certificates establish baseline compliance context, but they do not replace evidence that the surgical instrument kits OEM assembly remains stable under real production and use conditions.

FAQ: What is the typical OEM review timeline?

A focused technical review may take 2 to 4 weeks, depending on sample availability, test scope, and documentation quality. This is often far shorter than the time lost when an under-reviewed supplier triggers a corrective cycle after pilot build or after first shipment release.

Tolerance stack-up is one of the most underestimated causes of failure in surgical instrument kits OEM sourcing. It turns acceptable parts into unstable assemblies, complicates sterilization validation, and increases compliance risk when documentation and engineering controls are not aligned. Buyers who evaluate assembly behavior, dimensional trends, and process evidence can avoid many of the most expensive late-stage surprises.
