Modular IVD Hardware Explained: Benefits, Integration Limits, and Use Cases

Modular IVD Hardware Explained: Where Flexibility Adds Real Value

For many teams, modular IVD hardware sounds like an obvious upgrade. It promises faster builds, easier scaling, and cleaner product roadmaps.

But in real engineering programs, flexibility is only useful when it survives integration stress, verification demands, and field reliability expectations.

That is why modular IVD hardware should be judged less by architecture diagrams and more by interfaces, tolerances, serviceability, and compliance impact.

From a project delivery standpoint, the key question is simple: which functions should stay modular, and which must remain tightly integrated?

This distinction affects schedule risk, cost of change, design control, and how confidently a platform can move across product generations.

In practice, modular IVD hardware works best when teams define module boundaries around stable technical interfaces rather than around procurement convenience.

What Modular IVD Hardware Actually Means

Modular IVD hardware is a system architecture where major subsystems are designed as replaceable or reusable units with defined interfaces.

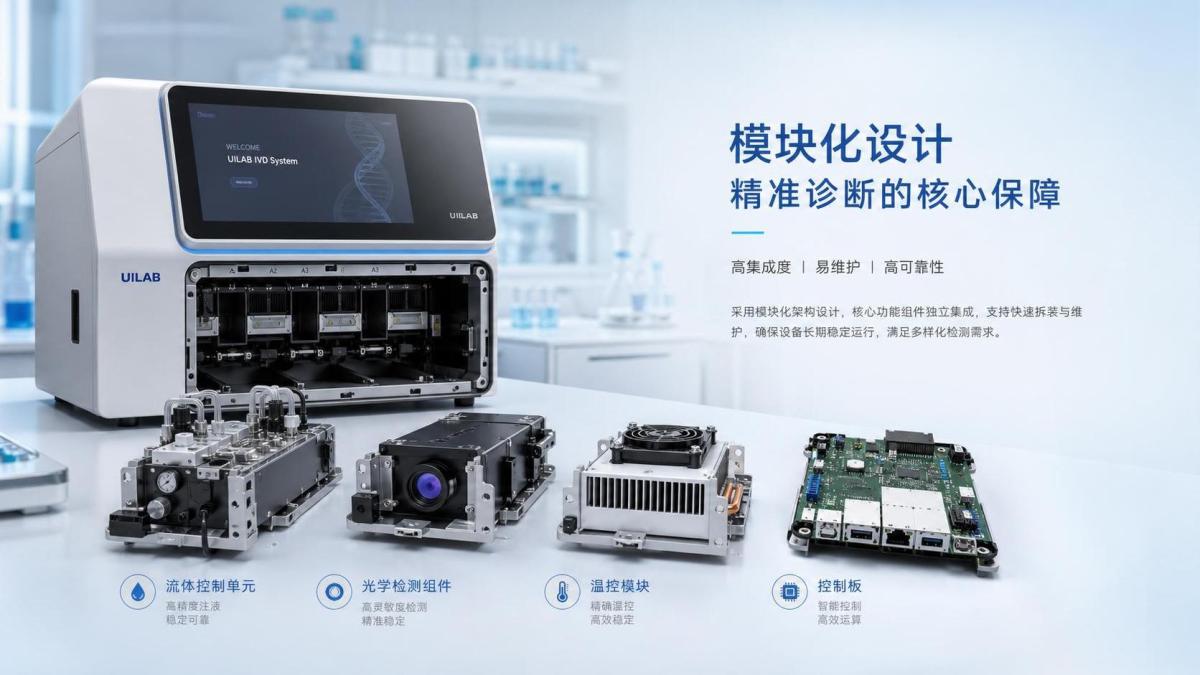

Typical modules include fluidics, thermal control, optics, motion, cartridge handling, power, and controller boards.

Software usually mirrors this structure. Each hardware block has known commands, diagnostics, calibration rules, and failure states.

That sounds straightforward, but modular IVD hardware is not simply a machine assembled from interchangeable boxes.

In diagnostic systems, subsystem performance is often coupled. Fluidic pressure may affect optical read stability. Thermal drift may shift assay timing.

So a module is only truly modular when interface behavior remains predictable under realistic assay loads, not just bench-top idle conditions.

A practical definition

A useful modular IVD hardware platform has four traits: mechanical separation, electrical interface control, software abstraction, and validation traceability.

• Mechanical interfaces are repeatable and tolerance-aware.
• Electrical interfaces are standardized and shielded against noise.
• Software interfaces isolate module behavior from system-level logic.
• Validation records show what changes trigger requalification.

Core Benefits of Modular IVD Hardware

The main appeal of modular IVD hardware is not novelty. It is the ability to manage complexity without redesigning the entire platform.

When done well, the architecture improves both engineering speed and operational resilience.

1. Faster development cycles

Teams can prototype one subsystem without freezing the full instrument. That reduces dependency bottlenecks across mechanical, firmware, and assay groups.

It also helps when external suppliers own specific modules, especially in optics or thermal management.

2. Easier platform scaling

A modular IVD hardware strategy supports product families. A base analyzer can share components with higher-throughput models or regional variants.

That can shorten the path from concept to derivative product, provided the interfaces were sized for future load conditions.

3. Improved serviceability

Field replacement becomes more practical when failed modules can be isolated quickly. This matters in decentralized testing environments and uptime-sensitive labs.

Service teams also benefit from cleaner diagnostics and narrower root-cause searches.

4. Better supply chain resilience

If one controller board or pump assembly faces lead-time issues, modular IVD hardware can make dual sourcing more realistic.

That said, alternate sourcing still requires strict equivalence data. A matching form factor alone is not enough.

Where the Integration Limits Appear

This is where many programs become overconfident. Modular IVD hardware has clear benefits, but the limits are just as important.

The closer a subsystem sits to assay-critical behavior, the harder true modularity becomes.

Interface complexity grows quickly

Every module boundary creates more connectors, protocols, tolerances, and failure modes. Those boundaries need verification effort and change control.

In other words, modular IVD hardware reduces some kinds of complexity while introducing another kind.

Performance coupling can override modular logic

Optical assemblies, microfluidics, reagent handling, and temperature control rarely behave as independent blocks during real assay execution.

If one module swap changes vibration, heat distribution, or timing jitter, the assay may drift outside validated limits.

Compliance scope may expand

Under MDR and IVDR expectations, changes to modular IVD hardware still need documented impact assessment.

A seemingly local hardware update may affect analytical performance, EMC behavior, usability, or post-market surveillance obligations.

This is why regulatory planning must sit beside architecture planning from the start.

Cost savings can be overstated

A modular IVD hardware platform may lower future redesign costs, but it often raises initial engineering cost.

Extra housings, harnesses, alignment features, interface boards, and validation work can offset early savings.

Best-Fit Use Cases for Modular IVD Hardware

Not every diagnostic platform needs the same modular depth. The strongest use cases usually share predictable interfaces and evolving product requirements.

Platform families with shared assay logic

When multiple analyzers use common detection methods, modular IVD hardware can support reuse across throughput tiers and market versions.

OEM partnerships

OEM teams often need configurable architectures. One customer may require a custom fluidics path, while another needs different connectivity or enclosure geometry.

Here, modular IVD hardware helps preserve a common engineering backbone while allowing controlled variation.

Service-heavy installed bases

If uptime and rapid field repair matter more than compactness, modular IVD hardware becomes attractive.

This is common in distributed testing networks, hospital systems, and multi-site laboratory deployments.

Technology refresh programs

When a platform needs future sensor, processor, or connectivity upgrades, modular IVD hardware can reduce redesign scope.

Still, the gains depend on disciplined interface management from the original design stage.

A Decision Framework for Engineering Teams

Before committing to modular IVD hardware, it helps to test the architecture against a few hard questions.

A good rule is to modularize what changes often, what fails independently, or what varies by product tier.

Keep tightly coupled assay functions integrated unless the interface physics are genuinely mature.

What Strong Evaluation Looks Like

This is where independent technical benchmarking becomes useful. Claims about modular IVD hardware should be checked against measurable evidence.

At VSM, the practical lens is straightforward: interface integrity, repeatability, lifecycle durability, and compliance-readiness matter more than slide-deck flexibility.

That means looking at connector fatigue, EMI margins, thermal stability, calibration retention, service error rates, and revision traceability.

For sourcing and architecture decisions, those signals are far more useful than generic claims about modular design.

Final Takeaway

Modular IVD hardware is valuable when it is built around disciplined interfaces, not broad promises of flexibility.

The best outcomes appear in platforms that need reuse, serviceability, controlled scaling, or staged technology refresh.

The biggest risks appear when teams ignore subsystem coupling, underestimate validation work, or treat compliance as an afterthought.

For technically sound decisions, evaluate modular IVD hardware by how it performs under integration pressure, not by how configurable it looks on paper.

That approach leads to stronger platform planning, cleaner sourcing decisions, and fewer surprises later in the lifecycle.
